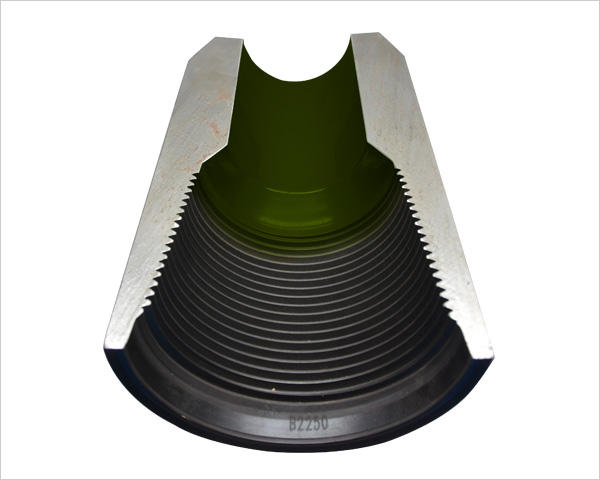

DJ206 Coated Products


  Product Characteristics:
- DJ206 is a powder coating based on epoxy-phenolic resin, which can be used in a wide range of  temperature and PH.
- It has excellent corrosion resistance and has been successfully applied in geothermal environment.
- Excellent mechanical properties such as torque resistance, tensile resistance and seismic strike.
- Reuse can keep the coating intact and prolong the life of the tube by 2 to 3 times.

- The outer surface design of the coating can effectively improve the fluidity and save drilling power  10 % to 25 %.



  Indicators of technical characteristics:
- Coating from: United States
- Type: Epoxy-phenolic(powder)    color:    green
- Coating thickness: 6-14 mils      adhesion: Class A
- Temperature resistance: Maximum temperature resistance 200  ℃ under mud circulation
- Stretch resistance: tensile strength to the steel yield limit, no change in the coating.
- Wear resistance: > 2.0 L/μ m
- Roughness performance: 0.32μ m
- PH range: 3-12 .5




  Chemical media corrosion resistance:
1. Soak at room temperature for 90 days in 10 % HCL, 10 % H2SO4, 10 % NaCL and 10 % NaOH liquids, no change in coating
2.Soak at 80  ℃  for 90 days in oil field sewage and crude oil without change of coating
3. Soak gasoline, diesel oil and kerosene at room temperature for 90 days without changing the coating




  High temperature autoclave performance:
Routine test: PH = 12.5 148  ℃, 70 Mpa, time: 24 H, no bubbles, no soft,    no degradation of adhesion.




  Adhesion test:

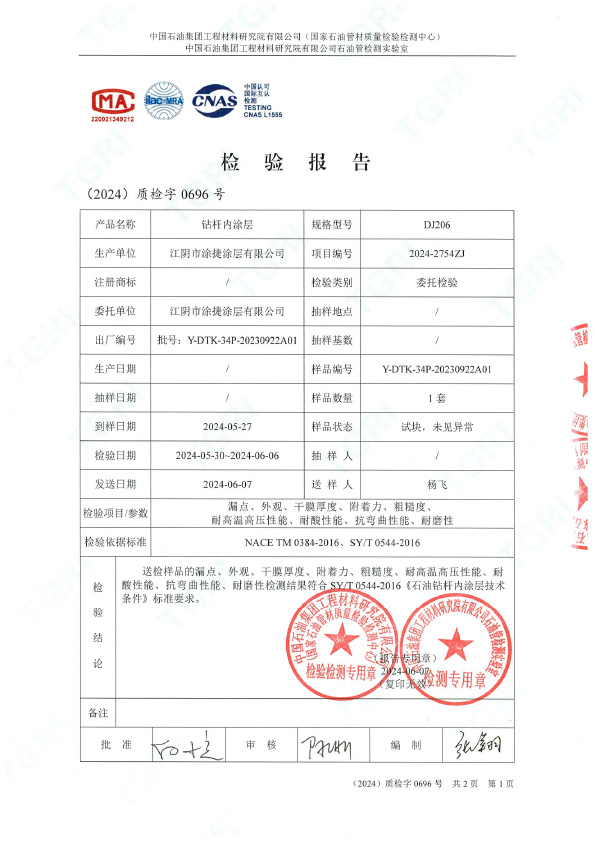

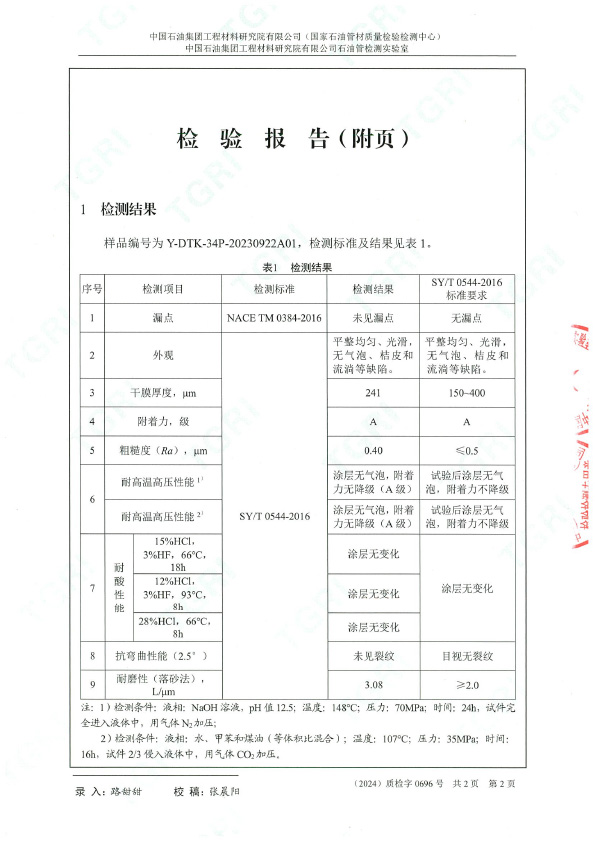

Prior to the test and after the high temperature and pressure test, the adhesion test results of the coating materials in accordance with SY/T0544-2016 standard appendix A, "Drilling pipe coating adhesion test method(knife thrust method)", showed that the adhesion of the coating was not changed by the high temperature and pressure test, and the results were all A class.
